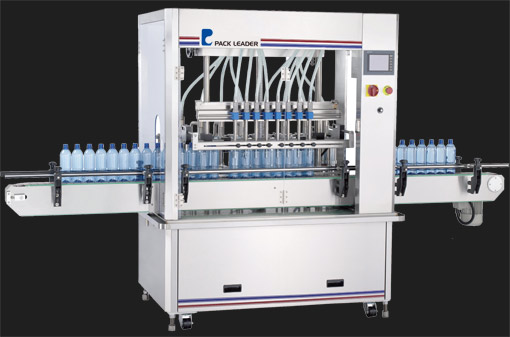

Model Number:FL-101
Servo Drive System
Pack Leader's volumetric filling system utilizes the delicate servo drive system to control the main filling structure, achieving high stability and precise positioning.
Vertical Driven Piston
Our exclusive servo control system coupled with the vertical movement of the filling piston provides long term energy saving and also effectively reduces machine load rate.
Tool-Free Adjustment
Adjustments can be made through the PLC, completely tools-free, giving users a fast and efficient result. The delicate servo control system design provides options for surface layer liquid filling, bottom layer liquid filling, and bottle neck (opening) filling accordingly with different types of liquids.
High Accuracy
The delicate servo system controls the filling amount through precise piston strokes, providing high filling accuracy. The piston is intelligently designed with an adjusting mechanism to enable users to obtain ultimate higher accuracy.
High Adapability
The FL-101 Automatic Filling Machine can be used in food, pharmaceuticals, chemicals, cosmetics, and other industries. The personalized control panel system is easy to use and offers effective result management through the production monitoring on the PLC.
- Features
- Specifications
- Samples
- Controlled by Panasonic servo system.
- Adjustable filling speed
- Accurate to ±0.5% ( with drinking water )
- Integrated digital control with Panasonic PLC and high tech touch screen controls for easy operation.
- Designed for easy changeover and cleaning.
- Professional manufacturing techniques using the ISO-9001 system.
- Sturdy conveyer system driven by Siemens motor. Adjustable conveyor guide rails to accommodate with different products.
- GMP standard stainless steel.
- Drip detect system.
- Bottle holding mechanism for the best position of the bottles before filling action.
- No bottle-no fill system.
- Bottle jam detection.
- Warning light and buzz alarm on production error.
- Filling zone protected by interlock guards for safety registration
- ABB circuit breaker for overload protection.
- Memory slots for storing filling parameters for future operation
- Easy to install and operate, requiring minimum maintenance for maximum performance and useful life.
- Delicate filler structure with high quality finish, comparable with European machines.
- Volume is easily adjusted through touch screen. Filling pistons are controlled by servo system.
- Individual piston adjustment for fine tuning.
- Digital control system to enable multiple filling actions on the same bottle for double, triple and more.
- Fully automatic rise for nozzles, adjustment can be done on touch screen
- Nozzles can set to be above bottle mouth or bottom up, synchronizing with liquid level (beneath or above) to eliminate bubbling of foamy liquids.
- Adjustable speed while filling, it can fill slowly at the beginning and then accelerate to faster speed, finally slow down once again to finish up. This can prevent foamy liquids from bubbling and avoid spillage.
| Filling Capacity Options | 20-100cc/50-250cc/100-500cc/200-1000cc |
|---|---|
| Liquid Contact Part Material Option | Stainless Steel 304/Stainless Steel 316 |
| Supply Voltage | 220/380V, 50-60Hz, 3 Phase |
| Power Consumption | 1.5 kW |
| Air Pressure | 4-6kg |
| Dimension | (L)3000mm X (W)950mm X (H)1770mm |
| Net Weight | 850kg |
---Specifications are subject to change without prior notice----
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
