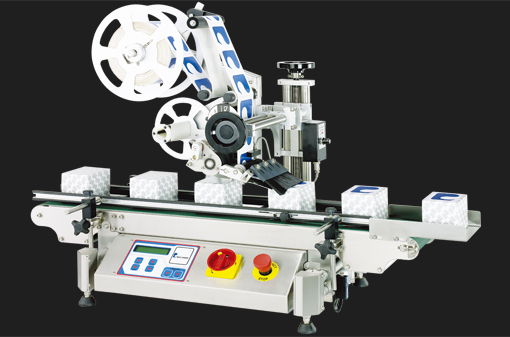

Model Number:ELF-20
The ELF-20 can be moved easily, so you can set up exactly where you’d like. It can be positioned on a tabletop or bench, or moved in-line for automatic or semi-automatic applications – a convenience not found with heavier, more elaborate labeling machines. With our advanced sensors, the ELF-20 delivers optimal efficiency. Hand wheels provide simple adjustments, enable quick set-up and easy changeover.
- Features
- Specifications
- Samples
- The label count feature lets you precisely track progress at any point during the production run.
- The ELF-20’s controls are fully synchronized, ensuring that all components run at the same speed.
- The ELF-20 features a battery-free microprocessor control system that maintains default settings and memory even after the machine sits idle for a long period of time. Up to five settings can be stored for future use, so you don’t have to waste time re-entering the necessary information.
- It’s easy to upgrade the ELF-20 to activate hot-foil printer controls. This integrated feature simplifies label customization and allows the hot-foil printer to work in sync with the labeler to ensure accurate code placement.
- Modular design concepts for fast and simple maintenance. Flexible enough to handle production schedule changes with simple adjustments for rapid changeover.
- Stainless steel and anodized hardened aluminum alloys are employed to the structural design for a durable and stable machine.
-
Frame and main components are made from SUS#304 stainless steel and anodized aluminum.
-
The stepper motor essentially counts the “steps” necessary to reach the next label, ensuring fast, accurate label delivery.
-
The quantity can be preset for a production batch and the machine will automatically stop as the quantity is attained.
-
The ELF-20’s standard one-button teach label sensors can be effortlessly adjusted for various labeling applications. And, with the manual position setting, your labels are placed accurately on the product, each and every time.
-
Panasonic PLC control system
-
Adjustable speed for printing4.3" colored HMI system for easy operation
-
Five memory slots assist you an easier operation
| Model | ELF-20 |
|---|---|
| Electrical Supply | 110/ 220 VAC 50/ 60Hz Single Phase |
| Power Consumption | 400 VA |
| Dispense Driver | Stepper Motor |
| Applicator Height | 120 mm |
| Label Size | H:120 mm x L:300 mm Max. |
| Container Width | 150 mm Max. |
| Container Height | Flat 120mm Max. |
| Conveyor Width | 160 mm Max. |
| Conveyor Speed | 3~16 m/min |
| Dispensing Speed | 16 m/min. Max |
| Label Roll Inner Core | Dia. 76mm |
| Dimension | 1100mm (L) x 531mm (W) x 734mm (H) |
| Net Weight | Approx. 60 Kgs |
 |
 |
 |
 |
 |
