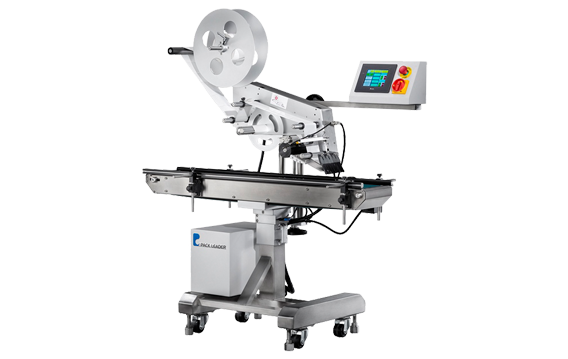

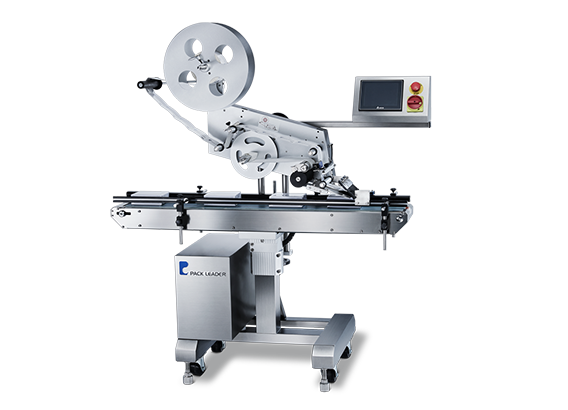

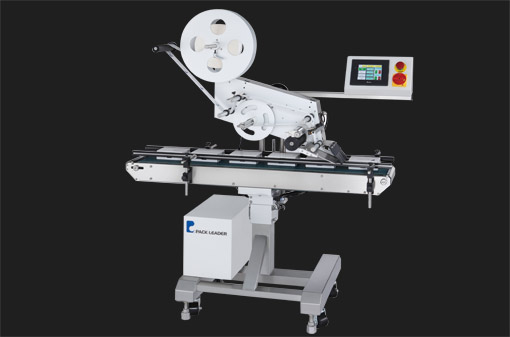

PL-211 Top Automatic Labeling Machine

Model Number:PL-211

High Speed, High Efficiency, High Stability
PL-211 Top Automatic Labeling Machine is suitable for a wide range of top labeling needs. It utilizes PLC system combined with a touch screen, an in-built digital counter and a self-diagnostic LED on the panel. This synchronizes control on the entire machine structure, which allows stable operation regardless of production speed.

The PL-211 Top Automatic Labeling Machine is suitable for a wide range of top labeling on flat package products. A simple, tool-free change is all that is required for changeovers, allowing maximum production efficiency. Its excellent stability shows real beauty in the performance results of your labeled products. This labeler uses PLC based control panel in the form of an advanced touch screen. The controls are easy to learn and simple to operate, with built in instructions and troubleshooting tools to reduce personnel training time and attain the most production efficiency.

The additional designed functions are to assist in management and quality control. The two stainless steel stands are equipped with mobility castors and a stainless steel fixing nut, allowing both mobility and stability while being compact. The wide conveyor is designed to be flexible in product usage and the height being easily adjustable, fitting various production lines, giving. All in all, these add up to a machine that is mobile, stable, flexible, and efficient.

  • Features
  • Specifications
  • Samples

Machine Structure

  • Belt Type Conveyor
    This labeler uses an imported industrial belt that is both durable and dirt repellant, allowing for a long life expectancy production usage. The material is also changeable should the need arise.
  • Precise Sensor & Special Design For Sensor Frame
    Utilizes top level fiber optic sensors to precisely label products without interference. The slide rail is has a unique design that is very difference from the poor design by other manufacturers.
  • Quality & Beauty
    In strict compliance with Good Manufacturing Practices (GMP) standards, the PL-211 is made of 304 stainless steel and anodized aluminum, and carefully treated to guard against the effects of harsher environments. The top chain is made of FRP chain material, along with the UPE guide rail on the conveyor system maximizes durability, protection and appearances. This durability translates into a solid choice for labeling machine longevity.
  • Simple Mechanism Adjustment
    Fine or coarse adjustments are easily made accordingly via the hand wheel mechanism to suit the customers various product size and labeling positions.
  • Rigid Machine Base
    The double foot stands are made with stainless steel. They are steady and compact, preventing the machine from shaking while in operation.
  • Flexible Mobility
    The mobility castor and stainless steel fixing nut are designed to flexibly move the machinery to support another production line. Therefore, it would boost the invest benefits.

Operation & Functions

  • In Built Instructions And Trouble Shooting
    The built-in instructions reduce personnel training time by allowing the operators to learn and operate at the same time. It provides flexible time arrangement for personnel to attain the most efficient production in order to obviate the possibility of personnel movement. The built-in troubleshooting assists operators to find prompt solutions to operation problems, helping avoid shutdown costs by finding quick solutions.
  • 30 Lots Cross Memory Module
    The cross memory modules records the best labeling setting methods, boosting productivity and speeds up changeover process, which will also allow new personnel to condition quickly.
  • Eight Synchronized Speeds Selection
    Dispensing and conveyor speed selections are synchronized for the most precise labeling effect.
  • Labeling Delay Function
    The labeling delay function is ideal for small scale adjustments and will calculate dispensing speed and position. Set up is fast and easy through the touch screen in addition to its clean, precise, and accurate labeling application.
  • Smart Label Length Setting Function
    Set counter for desired length and ideal positioning of label.
  • Easy Operation
    PLC based control panel on the advance touch screen allows easy learning and simple operation.
  • Missing Label Set
    Prevent product miss-labeled to ensure product accuracy while production and fulfill production QC procedure.
  • Production Preset Function
    A built-in counter keeps track of the number of products labeled to control production or to be used I batch mode, stopping the machine automatically when target production has been reached.
  • Auto Labeling Start Up Mode
    While the power is on, the labeler will enter labeling condition automatically for the same operation as the previous run with no need for further setup, saving lots of time and increase production efficiency.
  • Strict Quality Control
    Pack Leader products are manufactured under strict ISO 9001 quality control procedure. Pack Leader products are also strictly tested by the European CE standard and UL perfectly meet safety quality regulations.
  • Easy Maintenance
    Modular structure brought to easy and efficient maintenance process.
Supply Voltage 220/110 VAC 50/60Hz 1Phase
Power Consumption 700VA
Dispensing Speed 40m/min max.
Conveyor Speed 40m/min max.
Applicator Height 150mm / 200mm
Label Size 150mm x 300mm max.
Spool Diameter 76mm
Dimension 1300mm (L) x 750mm(W) x 1470mm(H)

---Specifications are subject to change without prior notice----
