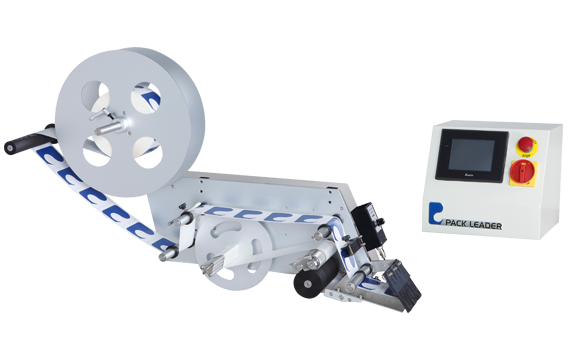

Model Number:PL-11
High Speed, High Efficiency, High Stability
PL-11 Independent Labeling Applicator & Control System can be flexibly integrated into existing production lines and can be used for top or side labeling according to customer requirements. A simple, tool-free change is all that is required for changeovers, allowing maximum production efficiency. Its excellent stability shows real beauty in the performance results of your labeled products. This labeler uses PLC based control panel in the form of an advanced touch screen. The controls are easy to learn and simple to operate, with built in instructions and troubleshooting tools to reduce personnel training time and attain the most production efficiency. The additional designed functions are to assist in management and quality control.
- RISC CPU and PLC control system
- Label position set
- Label counter
- Batch counter
- Missing label auto stop system
- Adjustable speed for printing
- Hitech Touch control LCD screen
- Problem showing and solution guarding
- Built-in troubleshooting/operation manual
- 30 memory slots
- Screensaver
- Adjustable applicator height
- Features
- Specifications
- Samples
- Adjustable 150mm label applicator
- 2-phase micro stepping motor
- PLC imported from Japan
- High quality switching power supply
- Power switch imported from Europe
- Control box has IP65 standard and CE
- Modular design for easy maintenance.
- Japanese fiber optic infrared sensor.
- Frame and main components are made from SUS#304 stainless steel and anodized aluminum alloy
| Supply | 110/220Vac 50/60Hz 1 Phase |
|---|---|
| Power | 500 VA |
| Label Size | H:150 mm Max. |
| Dispensing Speed | 40 m/min. |
| Dimension | L:1000 x W: 400 x H:800 mm |
| Net Weight | Approx. 55 Kgs |
 |
 |
 |
 |
 |
